For the same reason you should never put your hand on a hydraulic hose to check for leaks, never use traditional hydraulic oil anywhere near a heat or flame source. No, being around a hot ingot or furnace won’t give you injection wounds, but a pinhole spray from a 3,000 psi hose can quickly turn itself into a flame thrower.

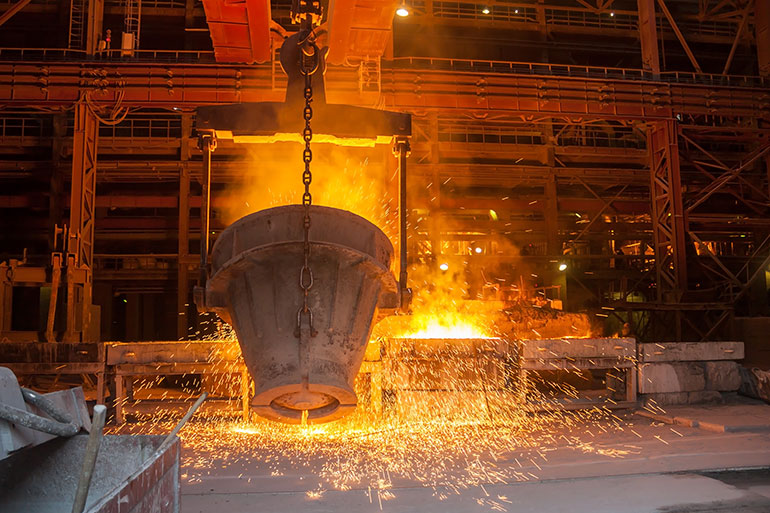

In standard fluid power systems, mineral-based hydraulic oils are the default choice due to their excellent lubricity, common availability, and low cost. However, in high-heat industrial environments, like steel mills, die-casting facilities, and glass manufacturing plants, a standard oil leak can quickly turn catastrophic.
The issue leading to my earlier example is that mineral oil can atomize into a highly flammable mist when subjected to high pressure (think pressure washer and not garden hose). To mitigate this risk, facilities use fire-resistant hydraulic fluids, commonly abbreviated as FRHFs. To properly select and maintain these fluids, ISO breaks them down into four primary categories based on their chemical composition and fire-retardant mechanisms.
These four categories are generally split into two major groupings, which are water-based fluids, which rely on steam to choke out a fire, and synthetic hydraulic fluids, which rely on chemically engineered, self-extinguishing compositions.
The first category is what we call HFA, which consists of oil-in-water emulsions that feature a very high water content, typically around 90-95%. Although HFA fluids offer excellent fire resistance and low cost, they suffer from very low viscosity and poor lubricity, making them suitable mainly for specialized applications such as mining longwall shields (roof support). I know what you’re thinking … HFA doesn’t seem to line up with Oil-In-Water as an acronym. It’s actually the ISO naming convention of Hydraulic Fluid A-Version.
The second category is HFB, or invert emulsions, which feature water-in-oil mixtures containing roughly forty percent water dispersed in oil. HFB fluids offer better lubricity than HFA, but they are less common today due to fluid separation issues. The third category is, you guessed it, HFC, and consists of water-glycols, which are the popular workhorse in industrial hydraulic environments.
Containing roughly 40-45% water dissolved in glycol, HFC fluids deliver outstanding fire resistance and good low-temperature flow, making them ideal for die-casting and automotive stamping, for example. The final category is HFD, of course, which represents fully synthetic, water-free formulations typically made from polyol esters or phosphate esters. Because they contain no water, HFD fluids provide superior lubrication and high-pressure performance, though they require seal materials such as Viton to operate reliably.
Understanding how these fluids prevent Dante’s Inferno-level disaster is fundamental to system design. When a water-based fluid like HFC sprays onto a hot surface, the intense heat instantly vaporizes the water content. This rapid evaporation creates a localized blanket of steam that displaces oxygen, effectively smothering the ignition source before the remaining chemical components can catch fire.
Synthetic, water-free HFD fluids operate at the molecular level, and while they can technically ignite if exposed to a continuous external flame, their chemical bonds resist rapid propagation, so the fluid naturally stops burning and puts itself out once the heat source is removed.
Switching your hydraulics from a standard mineral oil to a fire-resistant fluid is never a simple, drop-in replacement, and a baseline course requires understanding three critical maintenance factors. First, because water is a poor lubricant compared to mineral oil, water-based fluids cannot support the same heavy physical loads inside a pump. Pumps must often be operated at lower speeds or reduced pressures to prevent premature internal wear.
Second, chemical and seal compatibility must be verified because synthetic HFD fluids, particularly phosphate esters, will aggressively attack standard nitrile seals, causing them to swell and disintegrate. Systems running HFD must therefore be retrofitted with fluorocarbon or Viton seals, which may or may not be easy, so it’s best to design the hydraulics with fire resistance in mind.
Third, fluid health must be monitored religiously, so be prepared for regular testing to maintain the correct water-to-glycol ratio, because if the water evaporates over time due to system heat, the fluid loses its fire-resistant properties. By matching the correct fluid classification to the operating environment and then ensuring strict component compatibility, fluid power technicians can drastically improve plant safety without sacrificing mechanical reliability.
